Konmax Orange Juicer Machine Specification:
| Material | Stainless steel | Delivery time | 20FT: 10days; 40HC: 15days |
| Width | 440MM | Length | 480MM |
| Height | 880MM | Model | XC-2000E-4 |
| orange size | 40--90mm | Output | 22-25 oranges/mins |
| Package size | 490*450*890MM | Certificate | CE approval available |
| Electrics Standard | 110V-220V,50-60HZ | Power | 120W/250W |
| G.W | 62KG | N.W | 56KG |
| 40' HQ loading | 210PCS | FOB Shanghai | USD |
| 20' FT loading | 88PCS | Warranty | 1 Year |

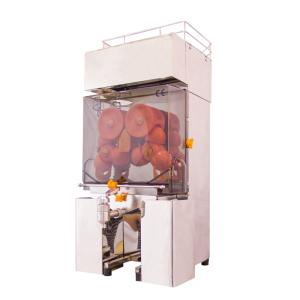

Konmax Orange Juicer Machine Detailed Photo:
Top stainless steel fruit basket can hold 10 kg oranges at one time
Narrow distance between concave and convex ball , making yield up to 60%
Automatic stainless steel control tap ,when you press tap the machine will start squeezing , no need press button every time .
Konmax Orange Juicer Machine Accessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing screw , two concave balls .
Konmax Orange Juicer Machine Operation Instruction:
1.Wrench screws of the front cover and take off the cover .
2.Take off the holder of the peel razor
3.Wrench screws on the ball.Hold the machine with both hands,and use two fingers to take off the plastic
balls .Do not use one hand only because this may cause injury.Since the spinning angels of axles are
different.sometimes you need to take off(or put on)the two corresponding top and bottom ball at the same time .
4.take off the center of the valve of the juicer tank.
5.Take off the mesh filter
6.Clean the all parts mentioned in the instruction book .
7.Clean the garbage can in times .
Konmax Orange Juicer Machine Production Scene:
Konmax Orange Juicer Machine Certificate:
Product Tags:
|
|
CE Stainless Steel Commercial Fruit Juicer / Orange Juice Juicer For Coffee Shop Images
|
